5177984-1
Manufacturer:
TE Connectivity
Mfr.Part #:
5177984-1
Datasheet:
Description:

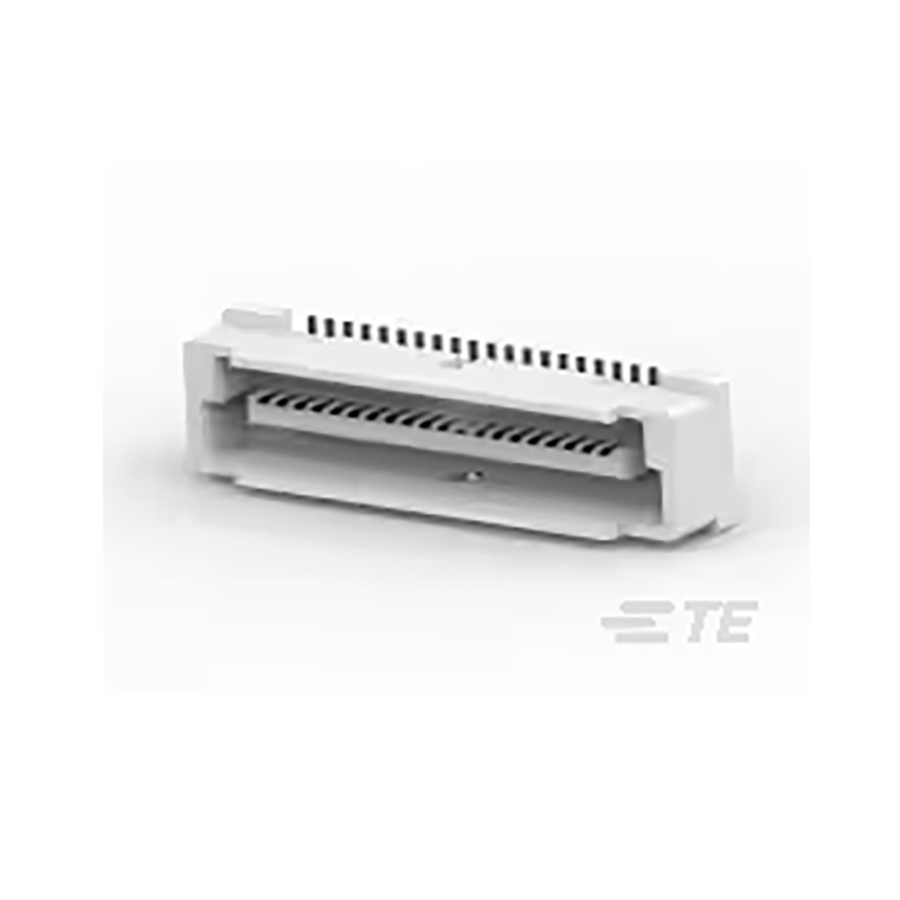

Headers and Wire Housings SMD/SMT Plug, Tab Number of Positions:40 Pitch:800 µm
| Parameter | Value |
|---|---|
| Length | 21.8 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 100 V |
| Number of Pins | 40 |
| Height | 5 mm |
| Packaging | Tube |
| Voltage Rating | 100 V |
| Depth | 6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 800 µm |
| Insulation Resistance | 2 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 800 µm |
| Current Rating | 500 mA |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Vertical |
| Operating Supply Voltage | 100 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 40 |
| Connector Type | Plug, Tab |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 2.4 mm |
| Insulation Material | Thermoplastic |
| Housing Material | Polymer |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Contact Current Rating | 500 mA |
| Housing Color | Natural |
| Plating | Gold |
| PCB Mounting Orientation | Vertical |
| Contact Gender | Male |
| Stackable | Yes |
| Stack Height | 8.9916 mm |
| Contact Shape | Square |
| Preloaded | Yes |
| Mated Stacking Heights | 17 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Contact Finish Thickness - Mating | 200 nm |
| Mating Alignment | With |
| PCB Mount Retention | Without |
| PCB Mount Alignment | With |
Stock: 1272
Distributors
pcbx
pcbxUnit Price$1.83981
Ext.Price$1.83981
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.83981 | $1.83981 |
| 10 | $1.71953 | $17.19530 |
| 25 | $1.60711 | $40.17775 |
| 50 | $1.50204 | $75.10200 |
| 100 | $1.40384 | $140.38400 |
| 300 | $1.31206 | $393.61800 |
| 500 | $1.22628 | $613.14000 |
| 1000 | $1.14611 | $1146.11000 |
| 3000 | $1.07118 | $3213.54000 |
| 5000 | $1.00113 | $5005.65000 |
